This entry covers the installation of the harness for the Nu-Relics power windows. I made a few mods to the harness. It was great as it came but I wanted to integrate it a bit into the chassis harness. The mods were just two. #1 was to sleeve the harness with heat shrink in any area that needed protection, like under the door sill plate and the run across the back set area. #2 was to add a couple of connectors at the driver's kick panel for connection to the door and the chassis harness.
First up was removing the wires for the connectors.
A bit of mock up to determine where the heat shrink was needed.
Also removed the tape wrap.
Applying the heat shrink
Punching the hole in the cowl for the boot
Corresponding hole in the door
Adding the weatherpack connectors at the driver's kick panel

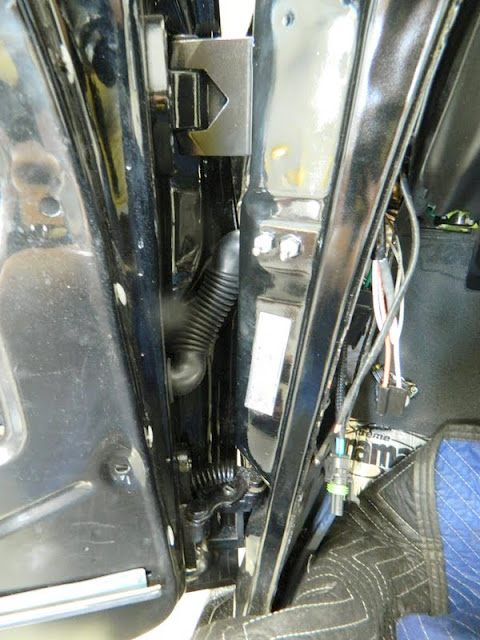

Routed to the driver's door
